Battery chargers

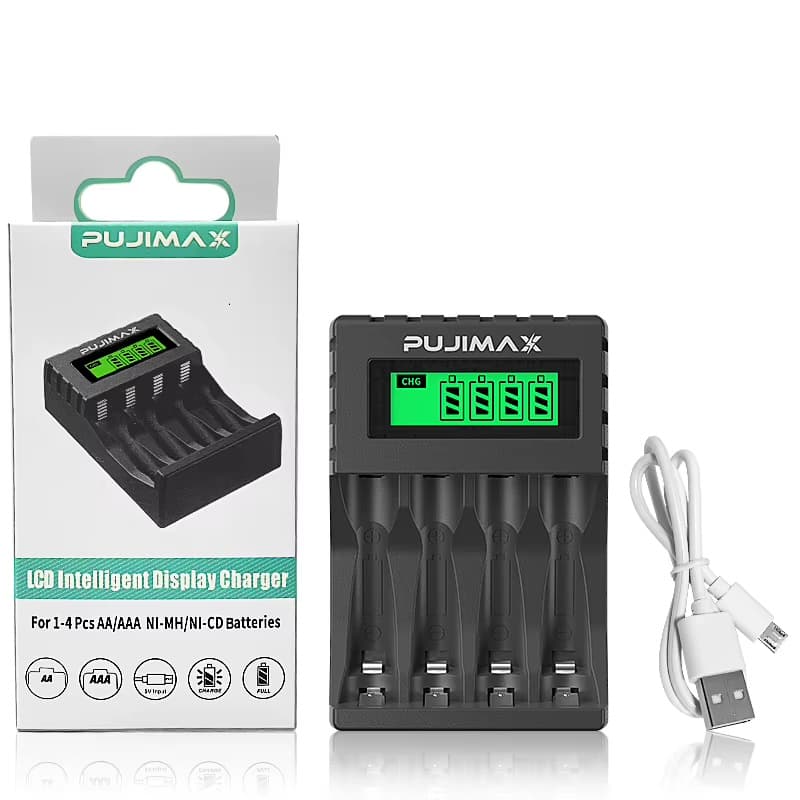

PJ-LCD005PJ-LCD005 — 4-slot LCD charger
Four slots with an LCD that shows charge state per slot, running from a 5V USB supply. The highest per-slot current in the range at a single cell.
Specifications as published on our current listings. Final specification and documents are issued with your quotation.
Model document pack
Check the document scope before samples and orders.
These files are checked against PJ-LCD005, the destination market and the shipping configuration. Coverage is never generalized across the whole range.
Market declarations
We hold manufacturer declarations covering our battery families and map them to your exact model and market before you order.
Lithium transport files
Type-C lithium and CR123A shipments need model-specific UN38.3 and SDS. Tell us the model and how it ships and we prepare the set.
ISO 9001:2015
Scope is production and sales of precision hardware stamping parts. We do not present it as a battery manufacturing certificate.
Specification
Published values for PJ-LCD005.
- Slots
- 4
- Fits
- 1.2V AA / AAA Ni-MH and Ni-Cd
- Input
- DC 5V / 2A
- Output
- DC 1.2V, 2000mA total
- Output power
- 3W
- Colours
- Black, white
Charging current by number of cells
- AA — 2000mA × 1 · 1000mA × 2 · 500mA × 3 · 500mA × 4
- AAA — 1000mA × 1 · 500mA × 2 · 250mA × 3 · 250mA × 4
Applications
Devices this model is listed for.
Confirm the load and cut-off behaviour in your own device before you commit to a production quantity.
Retail kitsHousehold useAudio equipment
